Pure Freedom ReelMaster™ Lite Twin Stack Electric Hose Reels

Dual Operator Powered Window Cleaning Hose Reel

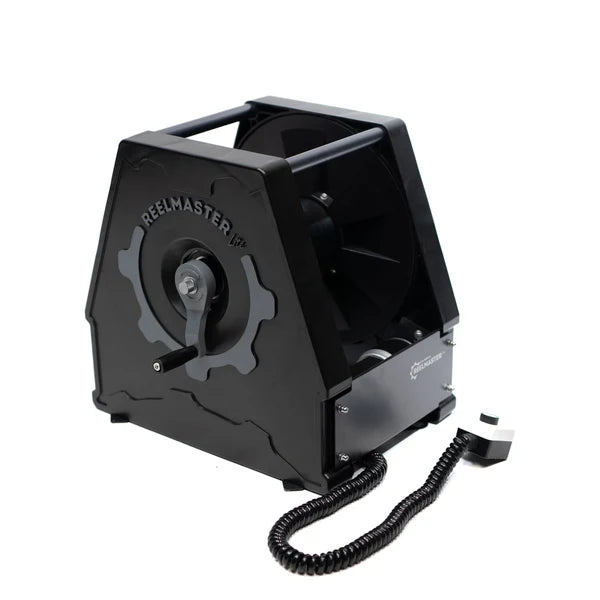

Brand new from Pure Freedom, the makers of the ReelMaster™, comes a new compact, hot water safe powered hose reel built for 100m of 6mm hose: The ReelMaster™ Lite.

A compact, push button powered reel built for fast pack downs and tidy vans. ReelMaster™ Lite gives you single speed control via a single push button and a manual backup handle.

This version is designed specifically for users who have dual operator water fed system set ups. Included is a precision engineered stainless steel frame to house 2 ReelMaster™ Lite electric hose reels.

Registered Design UK IPO Number: 6469369

Key features

• Single speed push button pendant for quick wind in

• Manual handle included for power free reeling if the need arises

• Integrated fittings: Brass 6mm hosetail inside the spool, plus stainless steel swivel with brass Series 26 female outlet to connect to your water fed system output

• Clean hose path with swivel to reduce twisting while reeling

• 12V loom with resettable 20A fuse

• Floor mount compatibility

• Hot water safe

Note: ReelMaster™ Lite is a simpler drive than the full ReelMaster™. It does not include soft start, snag detection, or variable speed.

What’s included

• 2x ReelMaster™ Lite powered reel unit

• Brass 6 mm hosetail fitted inside each spool

• Stainless steel swivel with brass Series 26 female connector on each outlet

• 2x Push button pendant control

• Power loom with resettable 20A fuse

• 2x Manual handle

• Stainless Steel Frame

• Instruction Manual

• Reels and Frame only: 6mm hose and fixings not included

Product Specifications

Capacity: Holds up to 100 m hose at 6mm ID
(microbore) per reel

Water: Hot water safe

Drive: Single speed pendant push button and
manual wind handle per reel

Electrical: 12V DC with 20A resettable fuse

Dimensions: H1081mm × W584mm × L611mm

Weight: 40.8kg

Installation

Easy to DIY install. Floor mount using suitable fixings, leaving clearance for the emergency handle. Check under floor for obstructions and place fixings on high points of ribbed floors.
